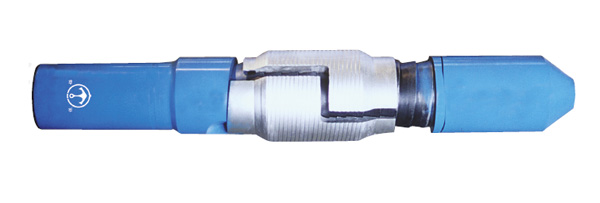

可退式卡瓦打撈矛 |
|
可退式卡瓦打撈矛是從落魚(yú)內孔進(jìn)行打撈的一種工具,它主要用于打撈鉆桿、油管、套管等。它可以與內割刀、震擊器等工具配合使用。
技術(shù)參數及規格
型號 |
打撈管柱內徑范圍 (mm) |
許用拉 (KN) |
接頭螺紋 |
LM–T60 |
40~45 |
150 |
2 3/8TBG |
LM–T80 |
40~45 |
250 |
2 3/8TBG |
LM–T86 |
40~45 |
300 |
2 3/8TBG;NC26 |
LM–T89 |
54~76 |
320 |
2 7/8TBG |
LM–T92 |
54~76 |
340 |
2 7/8TBG |
LM–T95 |
54~78 |
360 |
2 7/8TBG |
LM–T105 |
62~128 |
440 |
NC31 |
LM–T108 |
62~128 |
470 |
NC31 |
LM–T121 |
62~135 |
580 |
NC38 |
LM–T127 |
75~180 |
640 |
NC38 |
LM–T152 |
75~180 |
900 |
NC46 |
LM–T156 |
75~180 |
970 |
NC50 |
LM–T159 |
108~127 |
1010 |
NC50 |
LM–T162 |
108~180 |
1050 |
NC50 |
LM–T165 |
108~180 |
1090 |
NC50 |
LM–T178 |
150~180 |
1270 |
5 1/2FH |
LM–T184 |
170~206 |
1350 |
6 5/8REG |
LM–T197 |
170~323 |
1550 |
NC50; 6 5/8REG |
LM–T219 |
190~323 |
1920 |
6 5/8REG |
LM–T224 |
216~323 |
2000 |
6 5/8REG |
LM–T245 |
216~486 |
2400 |
7 5/8REG |
LM–T340 |
216~486 |
2600 |
7 5/8REG | |
|
|
|
|
